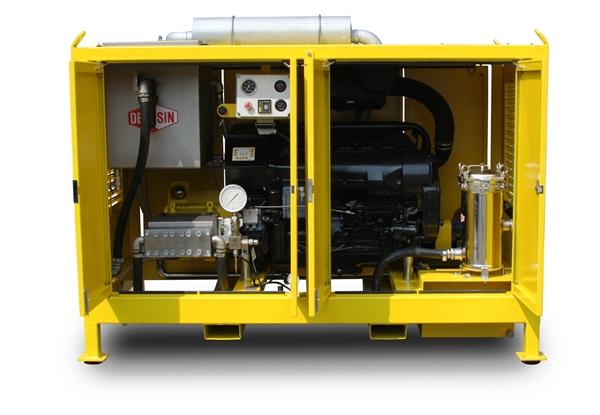

UHP DEN-SIN C-1400/38D

SKU: D140038
manufacturer: DEN-SIN

Product description

The series of Diesel driven High-Pressure Water-Blasters offer total independence of external power supply giving a higher degree of flexibility. The combination of high flow and high-pressure ensure great efficiency in a number of heavy duty cleaning task.

Technical Data   C-1400/38D
Pressure: bar/psi 1400/20300
Flow: L/min/USgpm 38/10
Power consumption: Kw/Hp 110/150
Engine:   Deutz 6 Cyl.
    Turbo Charged
    w.Intercooler
    Air Cooled
    Diesel
Engine speed: Rpm  1800
Pump speed: Rpm 517
High pressure hose m 20
Fuel tank capacity: L 140
Weight: kg 1700
Dimension L x W x H: mm 2600x1450x1800

Applications

These High-Pressure Water Blasters are capable of removing any kind of dirt:
• Removing of paint, graffiti and rust on steel and
   concrete surfaces.
• Roughening and removing of concrete surfaces.
• Removing of algaes/marine grows.
• Dust free sand blasting.


Features

• Non corrosive materials are used in pump, fittings & pipe.
• Triplex pump with carbide plungers.
• In-line valves.
• Built-in geabox.
• Extremely service friendly pump design.
• Safety valve protecting against over-pressurization.
• Trigger operated dump gun.
• Automatic engine shut-down system.
• Throttle control with vernier adjustment.
• Control panel with oil-pressure, temperature, hour meter and RPM gauges.
• 200L stainless steel water break tank with inlet filter.
• Low water level and pressure cut-off system.
• Two step water filtration system with booster feed pump.
• Built-in fuel tank with level indicator.
• Hot-dip galvanized frame with powder coating, lifting eyes and forklift pockets.


Industries/Segments

• Cleaning Contractors.
• Manufacturing.
• Building & Construction.
• Off-shore.
